Quick Release Pins, Suncor

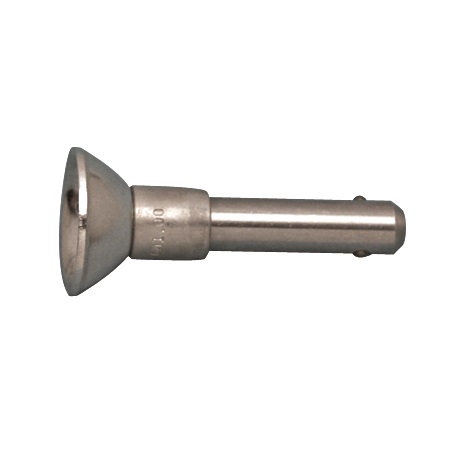

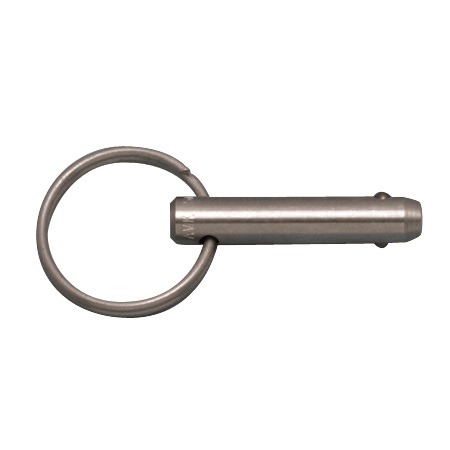

No cotter keys required. No taping. There are two styles, “Quick Pin” & “Quiklock Pin”. The clean design prevents dislodging accidentally or fouling lines. The Quick Pin, or “detent design”, allows for one-hand release or instsallation – just a quick pull or push. This type is used for applications requiring quick assembly and disassembly. Spring-loaded balls are staked in, exerting sufficient pressure to eliminate accidental release. The Quiklock Pin or “M” style is considered deluxe and are positive locking. These also allow for one-hand release – but with these just push the button, then pull. There’s no faster operating locking pin or safer pin. The unique ball-locking action means it cannot dislodge accidentally, even under severe tension. All pins are non-corrosive, aircraft quality stainless steel (300 series stainless steel). “Grip Length” is the distance from the shoulder (the ring on Quick Pin” style) to the locking ball bearings. Made by Suncor.
